A simple wireless lighting control solution for new and existing commercial buildings.

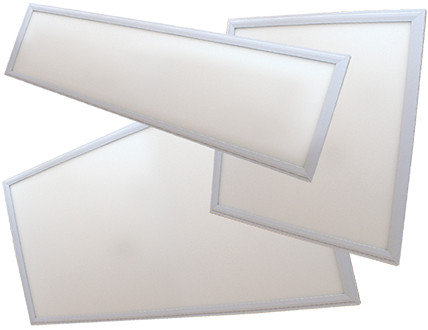

Taking energy efficiency to a new level. To compliment our VLED indoor lighting fixtures, we offer a range of Lutron wireless sensors & controllers to maximize energy savings in new & existing commercial buildings.

Wireless (RF) fixture control device for either the Lutron EcoSystem or 0–10V electronic fluorescent ballasts and LED drivers (depending on model). Based on RF input from Pico remote controls, Radio Powr Savr wireless sensors, or wired inputs from the PowPak fixture sensor.

PART NUMBER	DESCRIPTION	INSTALL GUIDE	SPEC SHEET
RMJS-16R-DV-B	Control lighting zone in the space, 16 amp, On/ Off
RMJS-5R-DV-B	Control lighting zone in the space, 5 amp, On/ Off
RMJS-8T-DV-B	Control 0-10V lighting zone in the space, 8 amp, On/ Off, 0-10v dimming
RMJS-CCO1-24-B	Control additional contact closure output, VAV terminal unit
RMJS-20R-DV-B	Control each 20 A receptacle circuit you want to control, 20A receptacle circuit
FCJS-010	Control each fixture in the space, 1 amp per fixture, 0-10v dimming
FCJS-010-BULK8	Control each fixture in the space, 1 amp per fixture, 0-10v dimming
FC-SENSOR	Occupancy / Daylight Sensor
FC-VSENSOR	Vacancy / Daylight Sensor

Wireless (RF), battery-powered, passive infrared (PIR) sensors that automatically control lights via compatible dimming or switching devices.

PART NUMBER	DESCRIPTION	INSTALL GUIDE	SPEC SHEET
LRF2-OCR2B-P-WH	Ceiling-mount, 360° field-of-view, occupancy/vacancy sensor
LRF2-OWLB-P-WH	Wall-mount, 180° field-of-view, occupancy/vacancy sensor
LRF2-VWLB-P-WH	Wall mounted sensor Vacancy only
LRF2-OKLB-P-WH	Corner-mount, 90° field-of-view, occupancy/vacancy sensor
LRF2-VKLB-P-WH	Corner-mount, 90° field-of-view, vacancy only sensor
LRF2-VHLB-P-WH	Hallway, vacancy only sensor
LRF2-DCRB-WH	Ceiling-mount daylight sensor

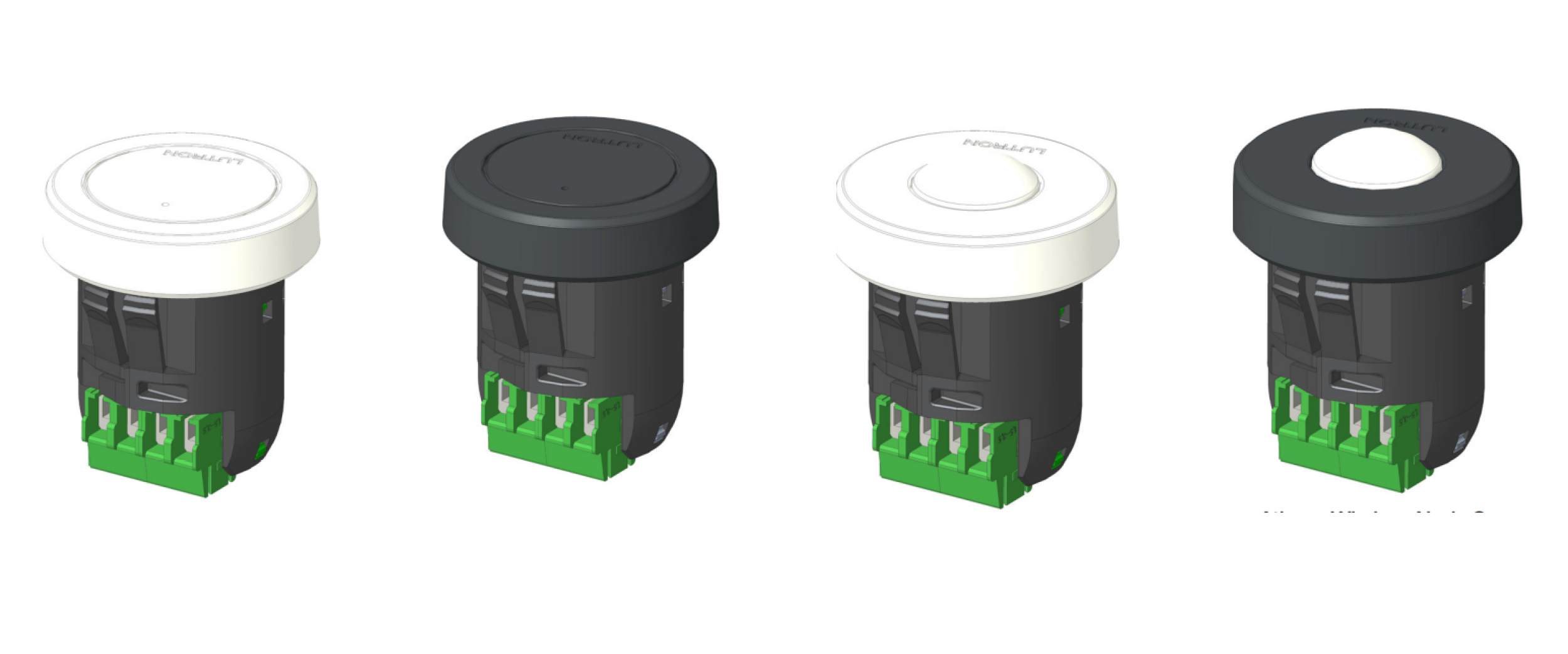

DFCSJ-OEM-RF	DALI/EcoSystem In-Fixture RF Module with Integral Occ/Daylight Sensor
DFCSJ-OEM-OCC	DALI/EcoSystem In-Fixture RF Module Only

Wireless (RF) device which incorporates Maestro wireless load controls, Radio Powr Savr wireless sensors, and Pico wireless remote controls. This provides a system that delivers energy savings, convenience, and ease of installation. Available accessories include 1 gang & 2 gang wall plates.

PART NUMBER*	DESCRIPTION	INSTALL GUIDE	SPEC SHEET
MRF2S-6ANS-XX	Wireless Switch, 6 AMP (Neutral Needed) On/Off
MRF2S-8S-DV-XX	Wireless Switch, 8 Amp Multi-location Switch On/ Off
MRF2S-8ANS-120-XX	Wireless Switch, 8A lighting, 5.8A fan (1/4HP motor), spec grade, 120V (Neutral Needed) On/ Off
MRF2S-6ELV-XX	Wireless Switches, 600W ELV, 120V (Electric Low Voltage)
MRF2S-6CL-XX	Wireless Switches, 150W dimmable CFL/LED, 600W incandescent, halogen, 600VA MLV, 120V, no neutral
CW-1-XX	Claro 1-gang wallplate
CW-2-XX	Claro 2-gang wallplate
*Substitute XX for Color Code - See Color Chart for options

Flexible and easy to use device that allows the user to control Lutron wireless load-control devices from anywhere in the space. This battery-operated control requires no external power or communication wiring. Available accessories include wall box adapter, single & double pedestals for desktop use.

PART NUMBER*	DESCRIPTION	INSTALL GUIDE	SPEC SHEET
PJ2-2BRL-GXX-L01	2-button with raise/lower
PJ2-2B-GXX-L01	2-button
PJ2-3BRL-GXX-L01	3-button with raise/lower
PJ2-3B-GXX-L01	3-button
PICO-WBX-ADAPT	Pico wireless remote wallbox adapter
L-PED1-XX	Pico wireless remote single pedestal
L-PED2-XX	Pico wireless remote double pedestal
*Substitute XX for Color Code - See Color Chart for options

When ordering, replace XX in code with required color option (Maestro & Pico only).

=

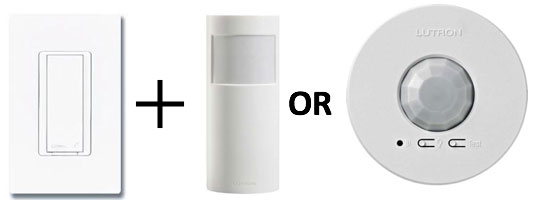

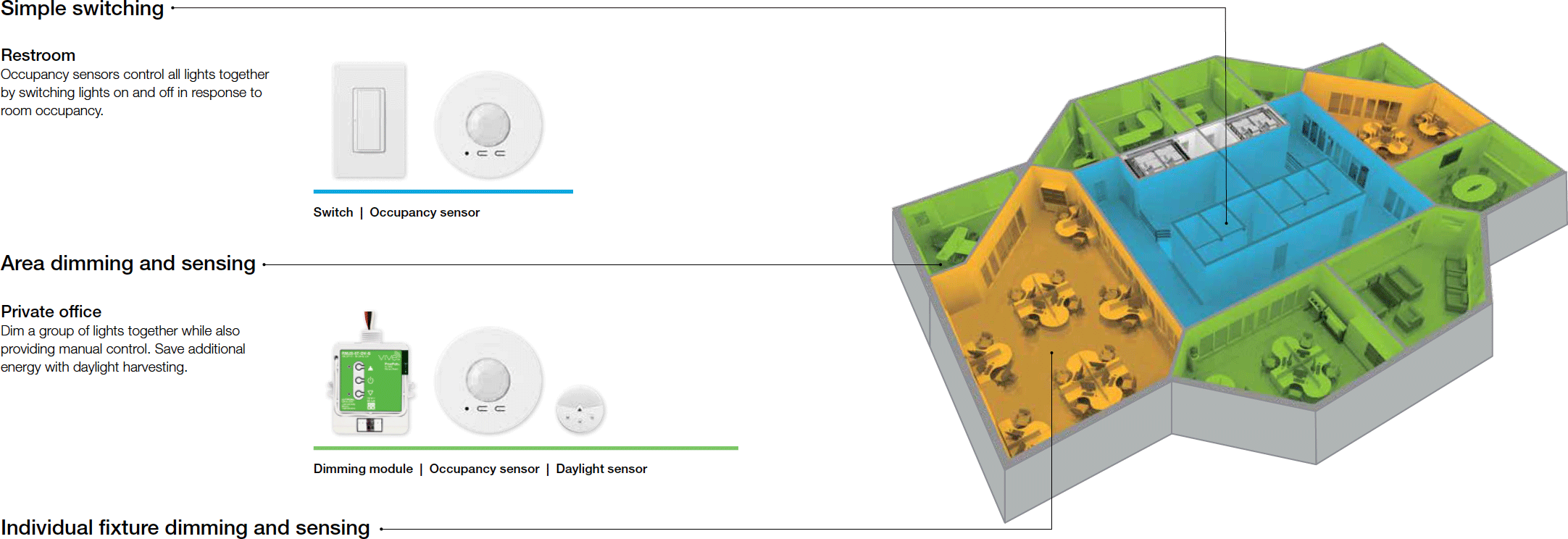

Occupancy sensors control all lights together by switching lights on and off in response to room occupancy. Typical Uses: Restrooms, Closets, Storage Areas

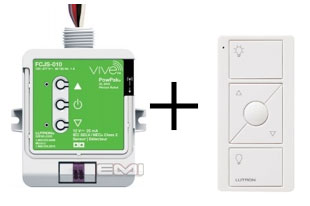

	=	Manually Dim, turn on/ off lights as a group

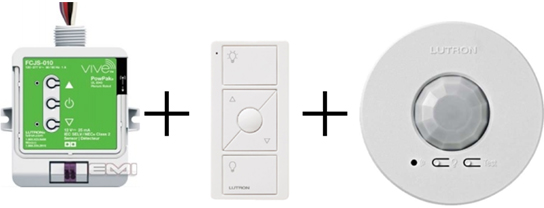

	=	Manually Dim, turn on/ off lights as a group & automatically control lights through: RF Occupancy/Vacancy Ceiling Sensor

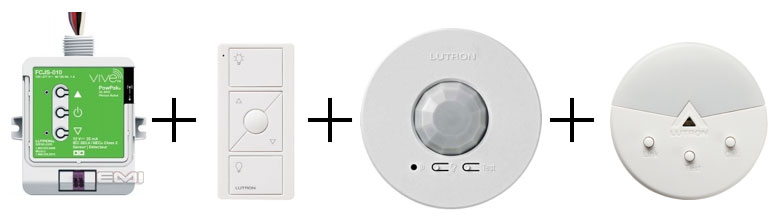

	=	Manually dim, turn on/ off lights as a group & automatically control lights through: RF Occupancy/Vacancy Ceiling Sensor Wireless Daylight Sensor
